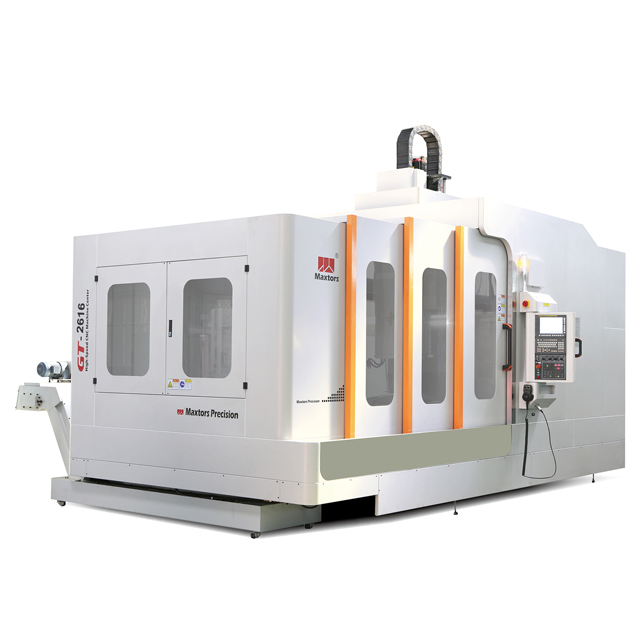

Name: GT-2616
Category: High Speed Milling
Product details
| PROJECT | DESCRIPITION | UNIT | MT-2616 |
| TRAVEL | X-axis/Y-axis/Z-axis | mm | 2600/1580/800 |
Spindle nose end to working table(approximate value) | mm | 200-1000(Optional column heightening) | |
| Distance between two columns(approximate value) | mm | 1620 | |
| TABLE | Workbench (long x wide) | mm | 2600×1480 |
| maximum payload | kg | 8000 | |
| SPINDLE | Spindle speed/RPM | rpm | 15000/10000 |
Spindle bore taper/TYPE | HSK-A63/A100 | ||
| FEED RATE | C00 Fast Feed (X/Y/Z) | mm/min | 15000/15000/10000 |
| G01 Cutting Feed | mm/min | 1-7500 | |
| PRECISION | Location accuracy/repetition accuracy | mm | 0.01/0.008 |
| OTHER | Machine weight | kg(About) | 23500 |
